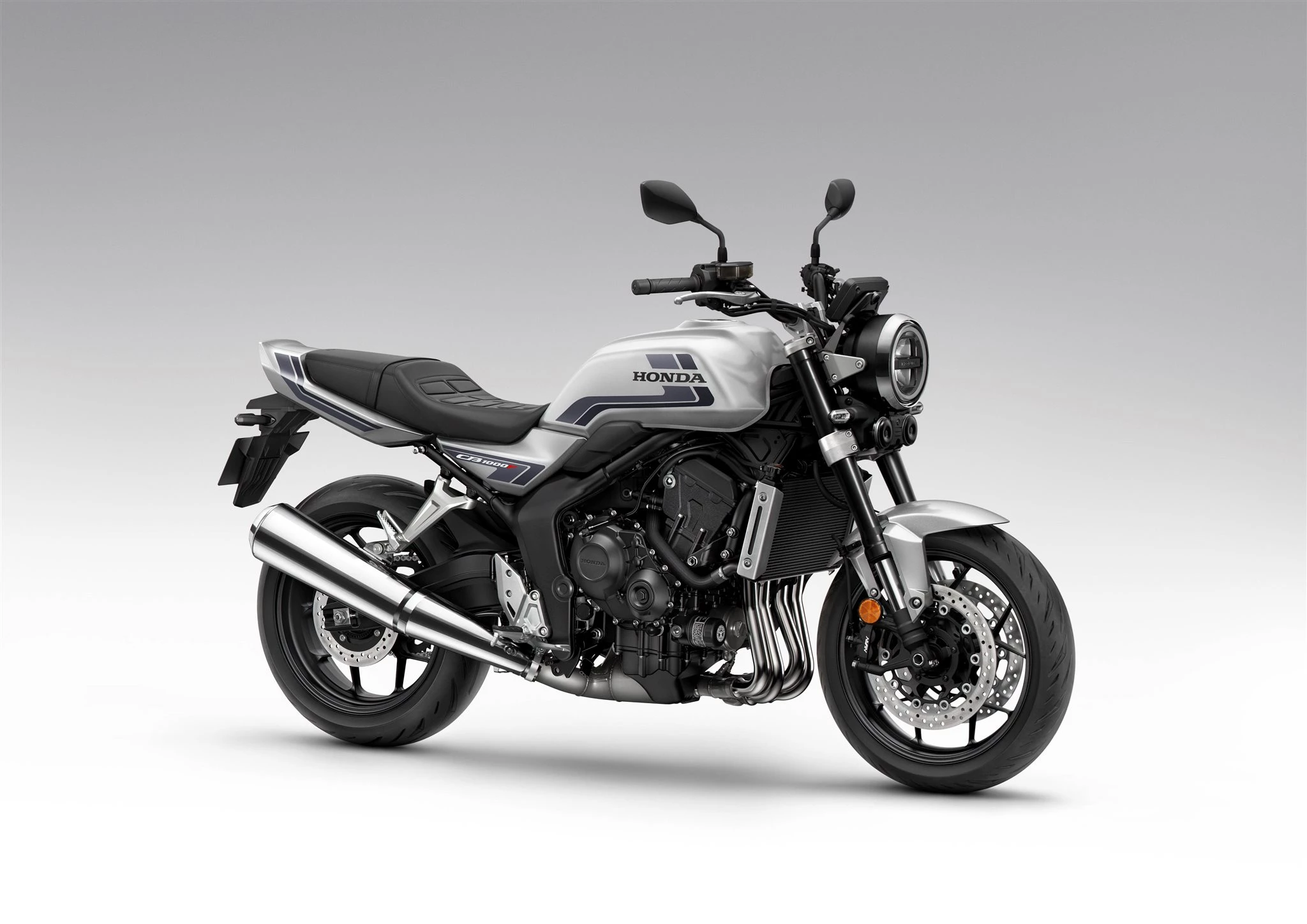

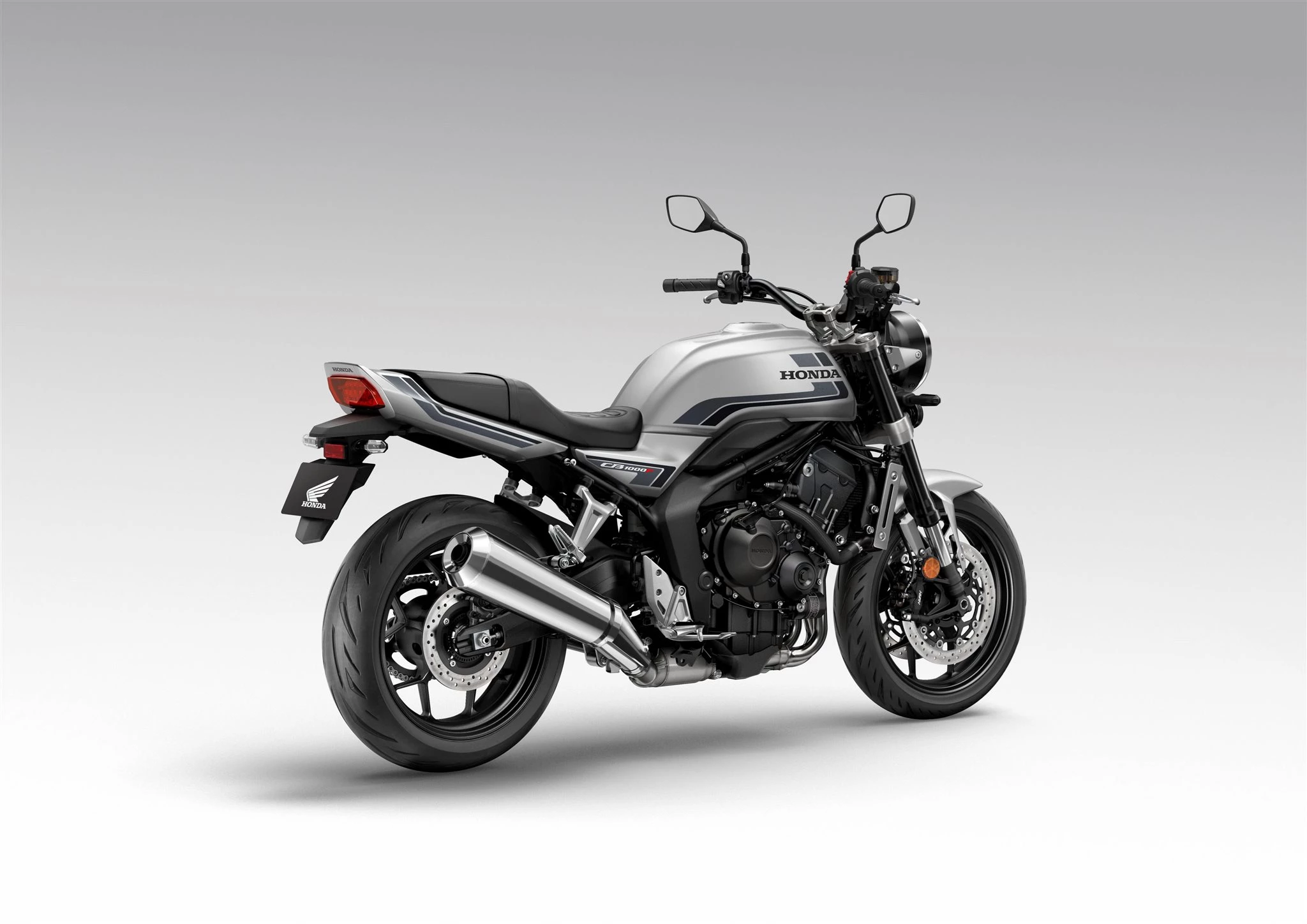

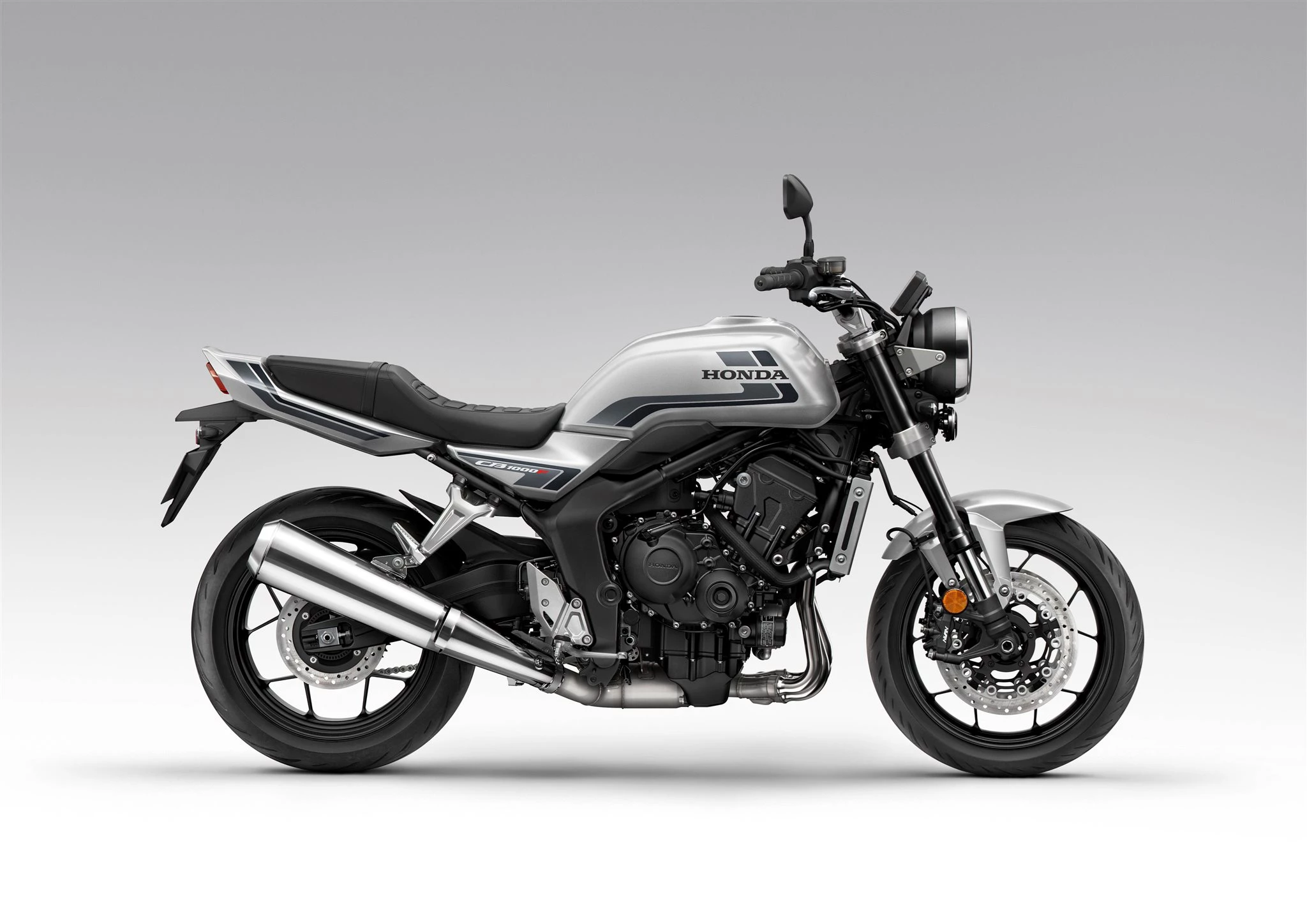

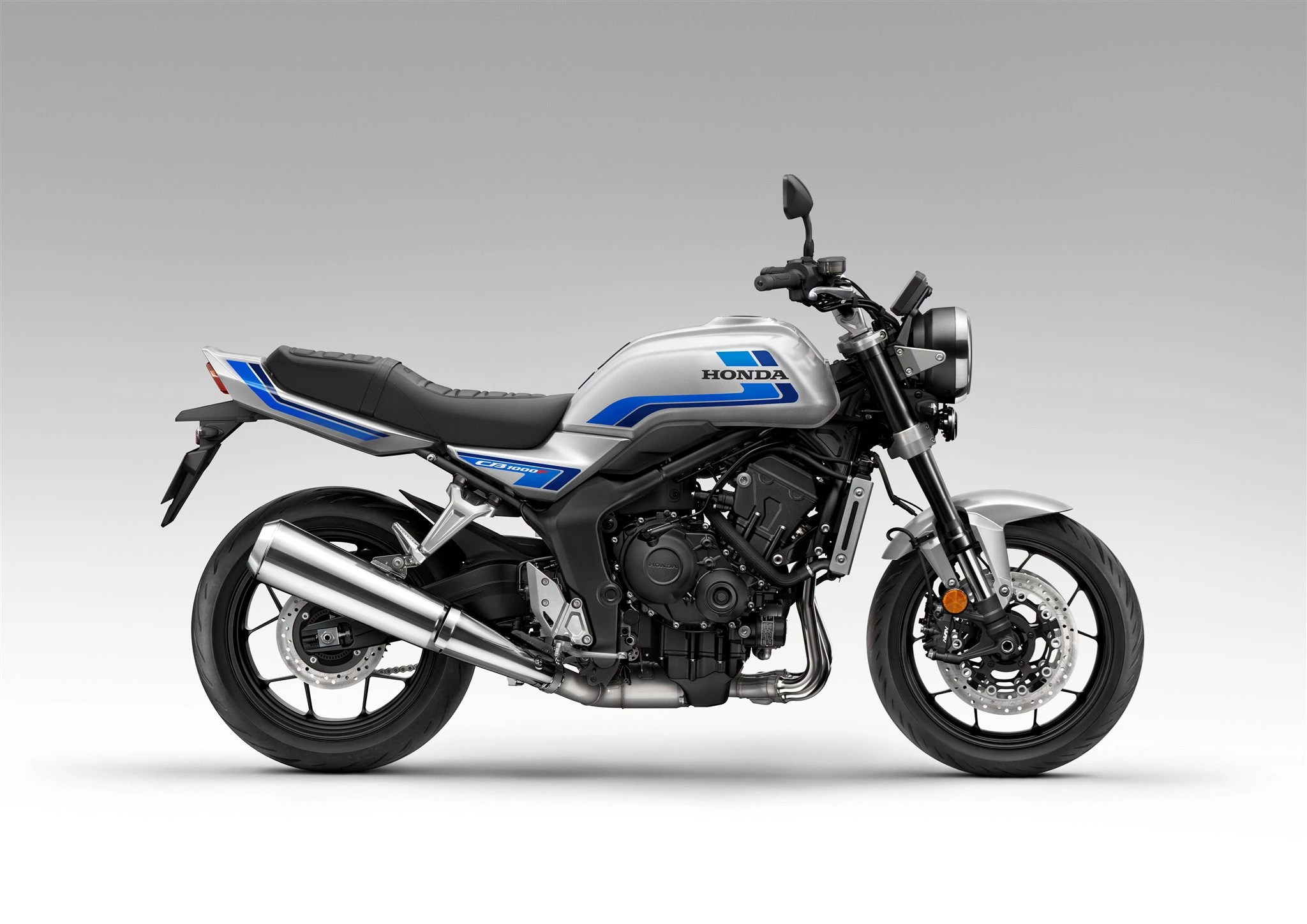

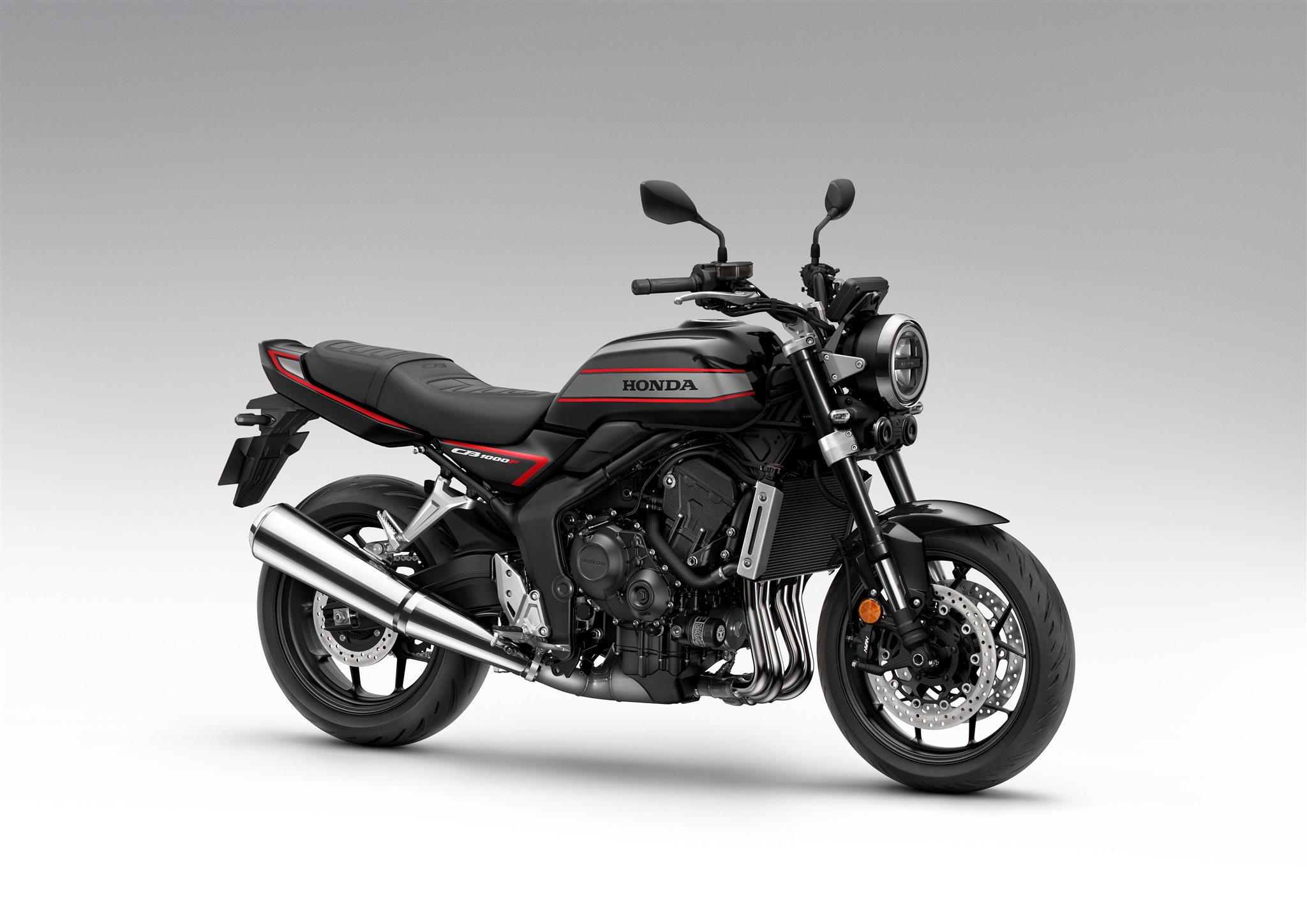

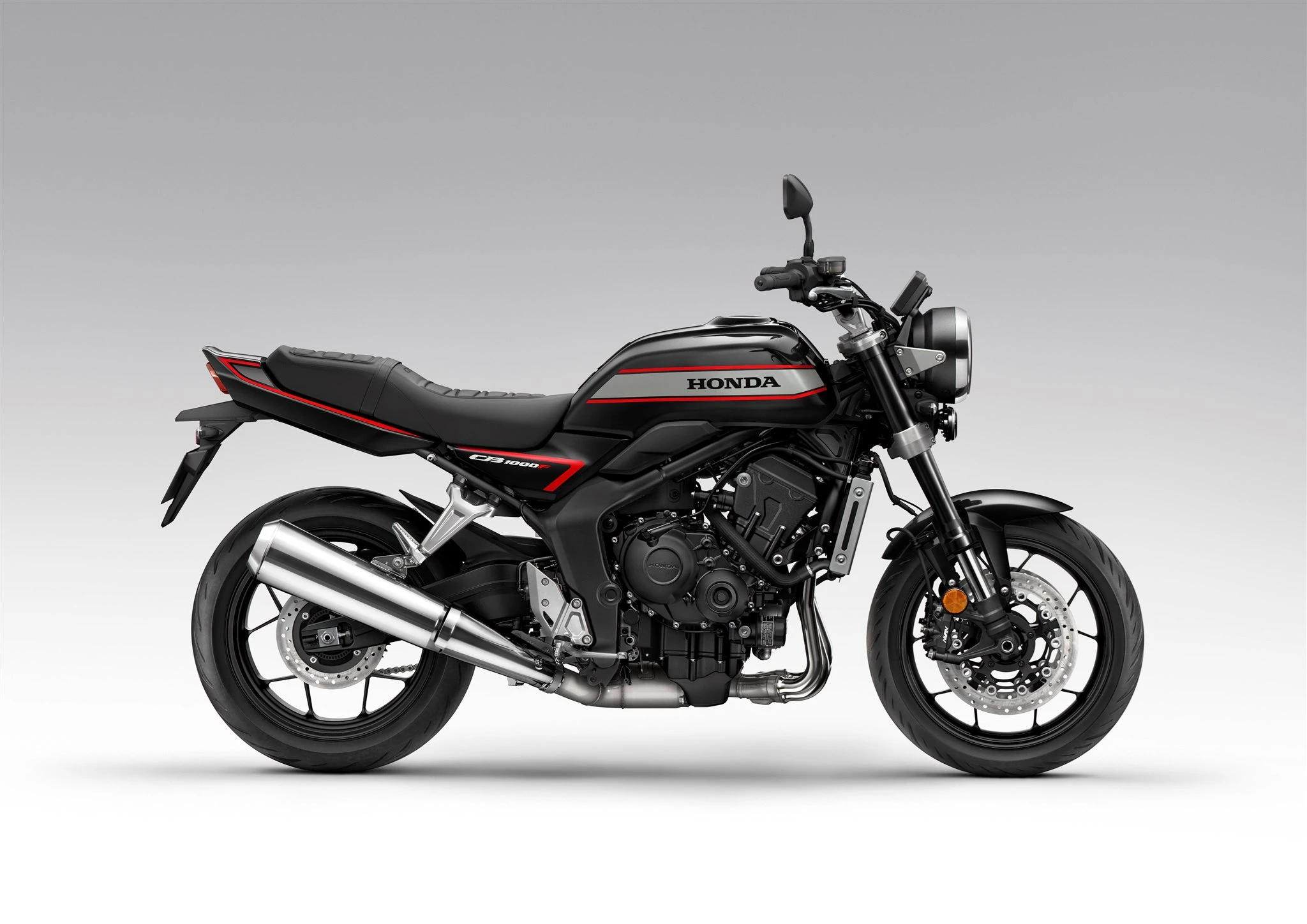

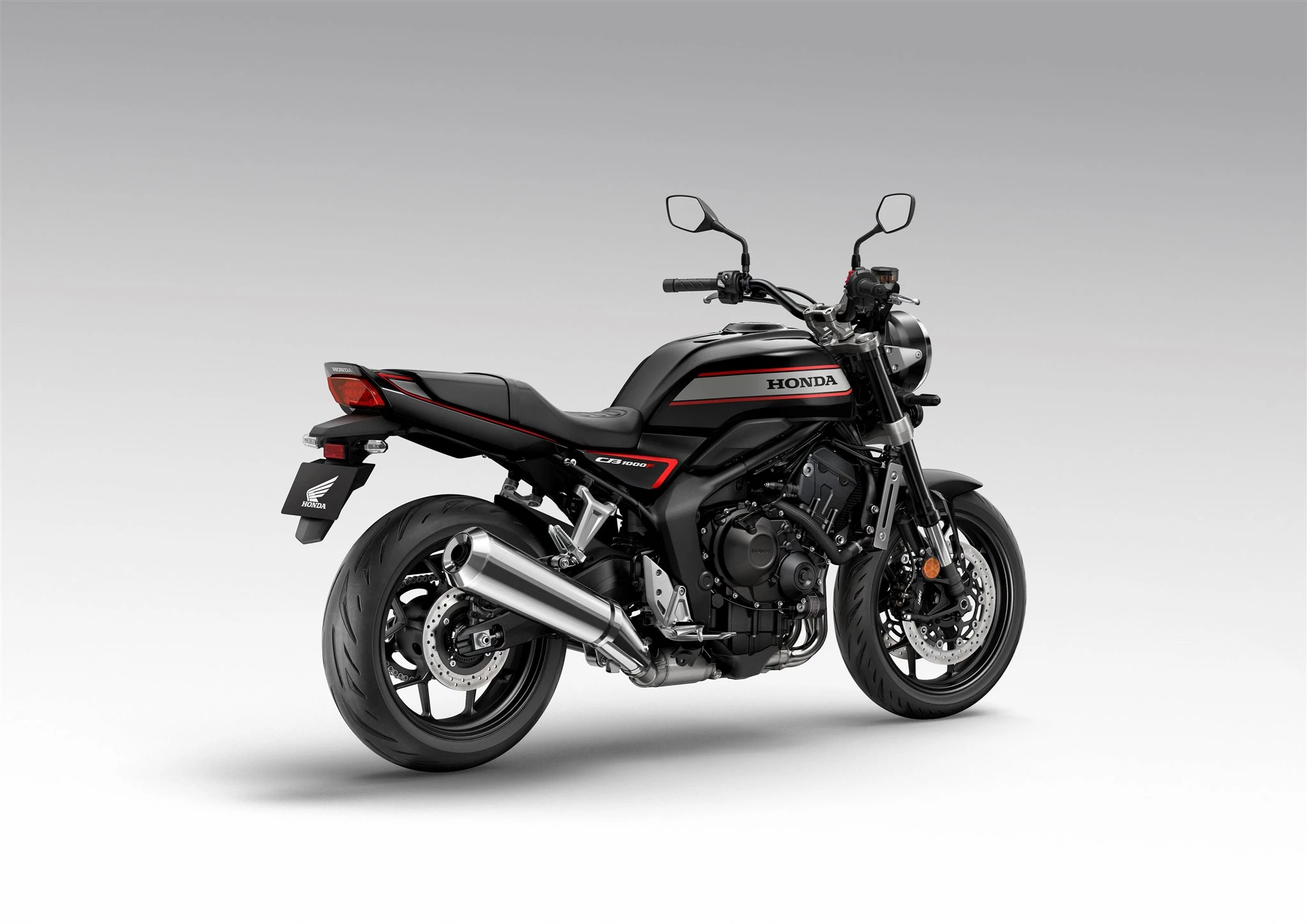

Honda CB1000F (2026)
TECHNICAL DATA

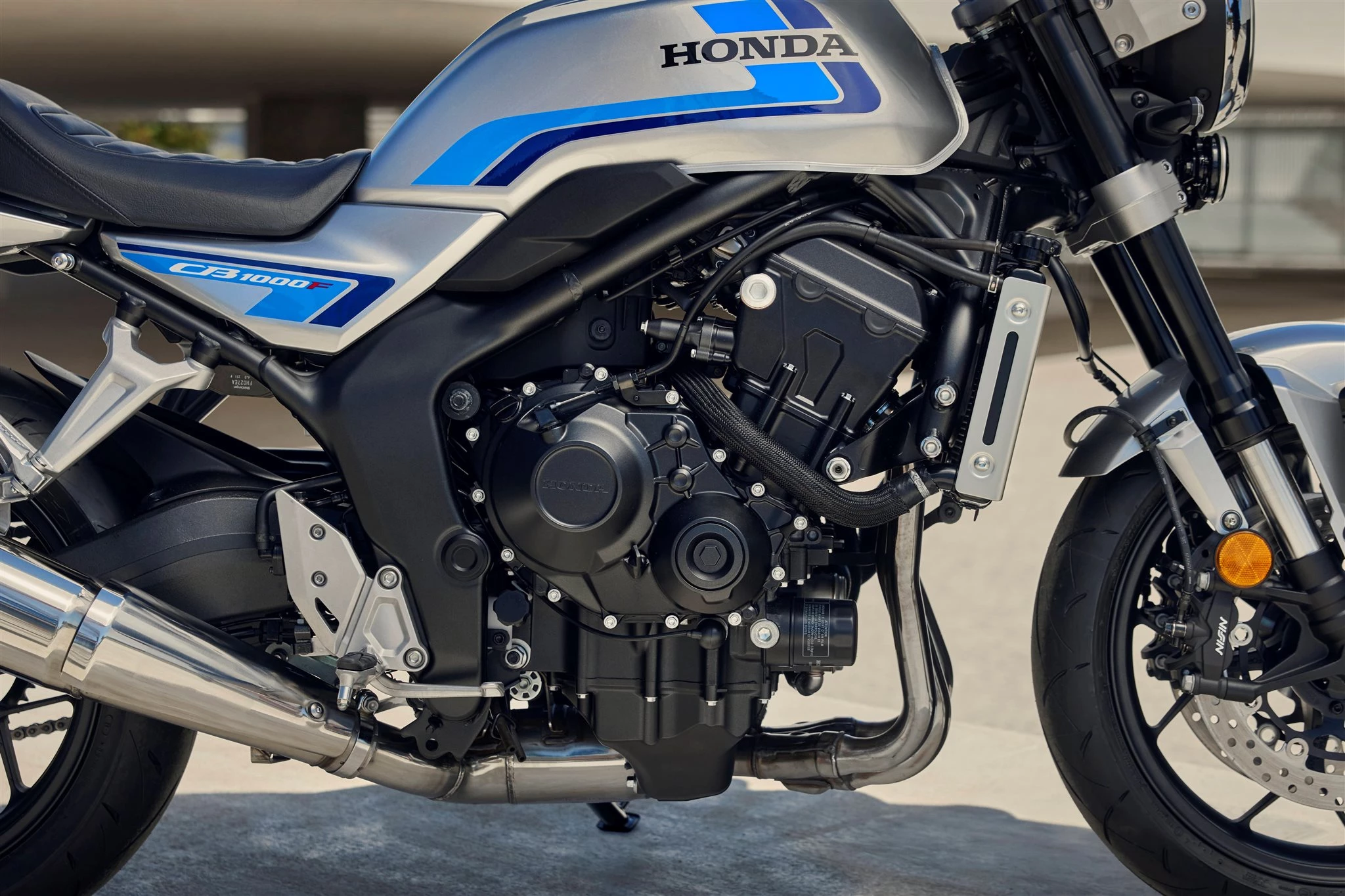

Engine type
In line
Cylinders
4
Strokes
4-Stroke
Valves per cylinder
4
Valves
DOHC
Cooling
liquid
Displacement
1000 ccm
Bore
76 mm
Stroke
55,1 mm
Max. Power Output
122 HP
Rpm at Max. Power Output
9000 rpm
Max. Torque
103 Nm
Rpm at Max. Torque
8000 rpm
Compression Ratio
11,7
Fuel system
Injection
Starter
Electric
Clutch Type
Multiplate in oil-bath, Antihopping
Final Drive
Chain
2WD
no
Transmission Type
Gearshift
Number of gears
6
Frame
Steel
Frame type
Double cradle
Steering axis angle
25 degree
Trail
98 mm
Front suspension
Upside-Down telescopic fork
Technology
Big Piston
Brand
Showa
Diameter
41 mm
Travel
130 mm
Adjustment
Compression, Preload, Rebound
Rear suspension
Swing arm
Material
Aluminium
Shock absorber
Monoshock
Strut
Pro-Link
Brand
Showa
Travel
140 mm
Adjustment
Preload, Rebound
Front brake
Double disk
Diameter
310 mm
Piston
Four pistons
Strut
Floating caliper
Actuation
Hydraulic
Technology
radial
Brand
Nissin
Rear brake
Disc
Diameter
240 mm
Piston
Single piston
Brand
Nissin
Assistance systems
ABS, Riding modes, Cornering ABS, Traction control, Anti-wheelie
Front tyre width
120 mm
Front tyre height
70 %
Front tyre diameter
17 inch
Rear tyre width
180 mm
Rear tyre height
55 %
Rear tyre diameter
17 inch
Length
2135 mm
Width
835 mm
Height
1125 mm
Wheelbase
1455 mm
Seat Height from
795 mm
Ground clearance
135 km
Kerb Weight (with ABS)
214 kg
Fuel Tank Capacity
16 l
Top Speed
230 km/h
Range
285 km
Euro Norm
Euro 5+
combined CO2 emissions
129 g/km
Combined fuel consumption
5,6 l/100km
Equipment

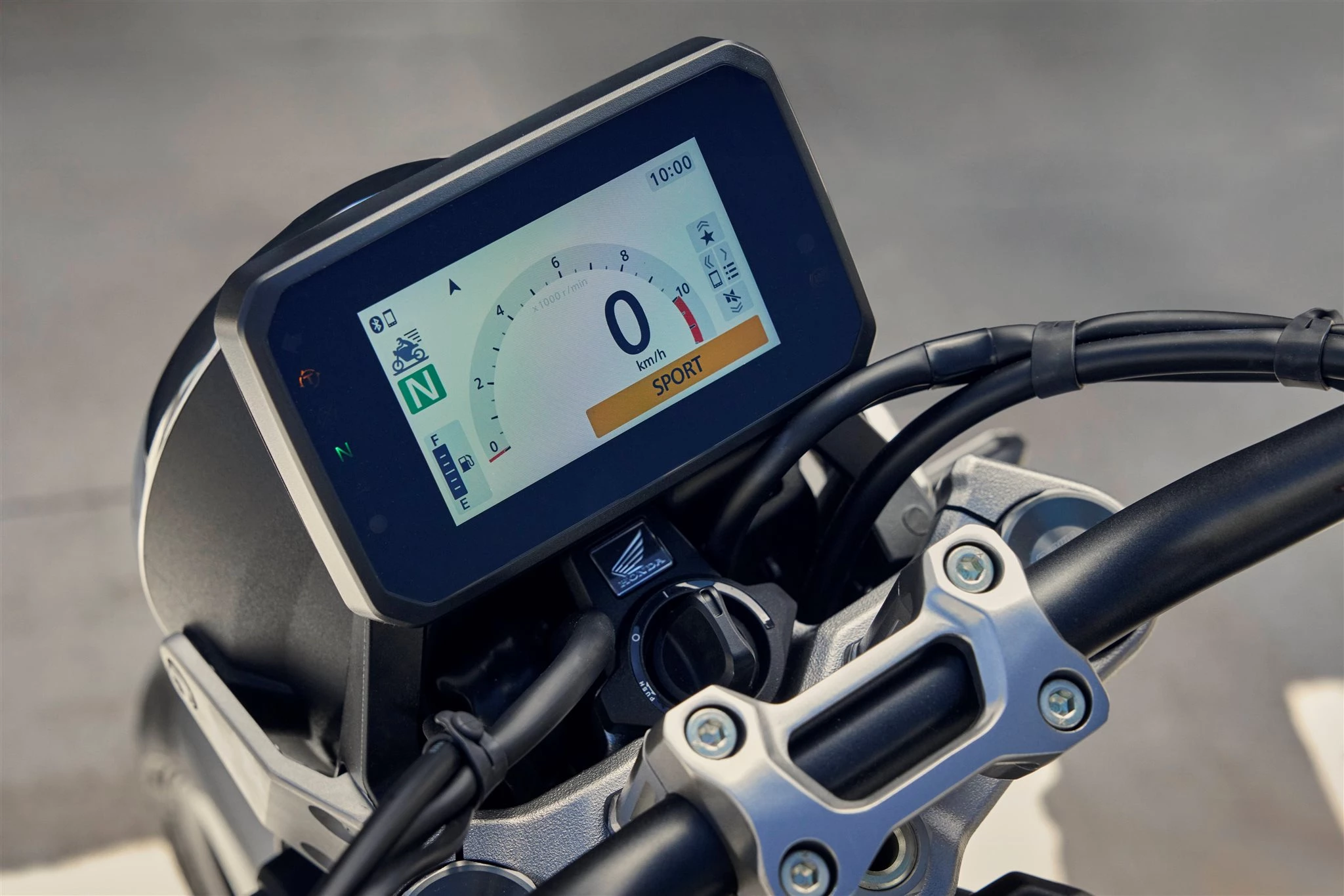

LED daytime running lights, LED-Headlights, TFT display, USB-C socket
All information without guarantee. Typing errors, mistakes and prior sale reserved.
